Woodfold Visifold Series 440 Accordion Doors
Product: Woodfold Visifold Series 440 Accordion Doors
Brand: Woodfold
Brand: Woodfold
A new concept in better security is now in sight: Woodfold Visifold Series 440 Accordion Doors are see-through commercial and retail security doors. Custom-crafted of heavy-duty acrylic panels and our exclusive steel hardware hinge system, this Series helps reduce annoying noise and dust while providing a welcome sense of openness. Designed to present an inviting entrance to retail and hospitality settings with moderate security needs, our Series 440 doors also serve as a unique decorative touch, and can be crafted to incorporate acrylic panels with those made of hardwood or Vinyl-Lam.
Configure Your Door
Dimensions
36 – 1032 in
72 – 121 in
$0.00
Specifications | Woodfold Visifold Series 440 Accordion Doors
- Panels: 4-1/4″ wide Acrylic panels (transparent clear or bronze) inserted into aluminum side channels (clear, bronze, gold, sand or white) yielding 4¼” overall width.
- Aluminum panel frame channels: Silver finish, White finish, Bronze finish, Sand finish, Black finish
- Panel Connectors: Flexible vinyl panel connectors color-coordinated to side channels
Standard colors: White, Sand, Gray, Brown, Black - Track: 1-1/8″ x 1″ aluminum, dark bronze, clear or gold finish; curvable option available
- Wheels: Nylon wheels on steel axles with ball bearing supplied as standard
- Lead Post: ¾” x 2-¾” aluminum, color-coordinated to side channels
- Latch: Deadlatch with thumbturn two-sides; other options available
- Jamb Molding: 1″ wide x 3/8″ deep aluminum
- Handle: Molded PVC with finger recess
- Width: Custom crafted to any width
- Height: Up to 10′ 1″
- Stacking Space: 1 ¼” per foot plus 2 ¾” for lead post
* Woodfold’s Series 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
Finish Options and Factory Default Configurations - Acrylic Panels
PLEASE NOTE: The stain and color samples on this page have been color matched using a monitor calibrated to the sRGB IEC1966-2.1 color profile. Intended only as a guide for color selection, the actual finish materials will vary due to the natural and acceptable variations in wood grain characteristics, textures, and color tones, as well as the color variation that occurs among individual computer monitors.
*All panel samples show factory default color combinations, unless noted otherwise.
Visifold Series 440 and 540 doors available with .118″ thick, transparent clear or bronze acrylic panel from stock.
Clear Bronze
Clear Clear (silver)
Clear White
Clear Bronze Factory Default Colors

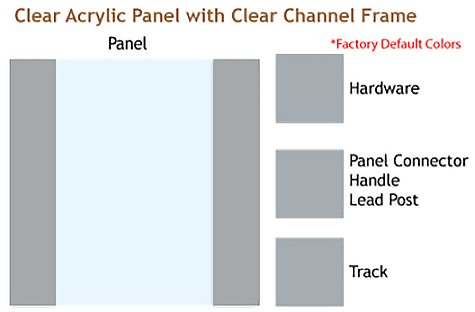

Clear Clear (silver) Factory Default Colors
Clear White Factory Default Colors
Clear Sand – Available only up to 8′-1″
Clear Black – Available only up to 8′-1″
Bronze Bronze
Clear Sand Factory Default Colors

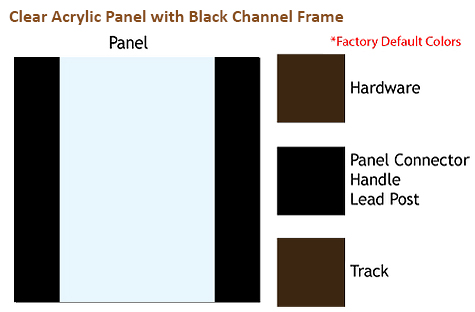

Clear Black Factory Default Colors | * Panel Connector is only available in brown for Series 440
Bronze Bronze Factory Default Colors
Bronze Clear (silver)
Bronze White
Bronze Sand – Available only up to 8′-1″

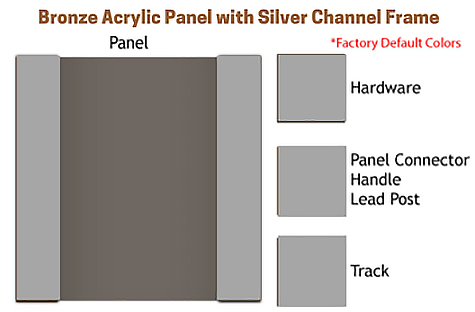

Bronze Clear (silver) Factory Default Colors
Bronze White Factory Default Colors
Bronze Sand Factory Default Colors
Bronze Black – Available only up to 8′-1″

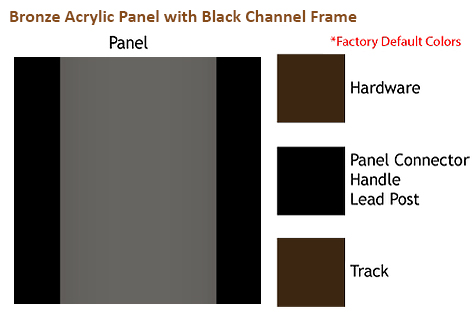

Bronze Black Factory Default Colors | * Panel Connector is only available in brown for Series 440
White
Sand
Gray
Brown
BlackHow to Measure for Accordion Doors
To assure correct sizing of your Woodfold accordion door the finished opening should be measured precisely from side to side for width and from the header surface where the track will be attached, to the finished floor or counter surface for height.
Width
Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have.
Note: if the widest dimension is at the bottom or center you may have to trim the suspension track to fit your opening at the top of the door as track lengths are made to the ordering width. This can be done with a hacksaw.Height
Measure from the top of the finished floor to the point where you are going to attach the track.
NOTE: For those areas where the floor is uneven (e.g. concrete floors) please take 3 or 4 height measurements along the floor. Use the shortest measurement as the finished opening height except 2100, 3300 or 4100. For sound doors use tallest height.Dimensions should be stated width first and then height and should represent sizes after any and all modifications have been done to the opening. Unless customer specified, we will allow 9/16″ floor clearance for doors over 4′ high and 5/16″ for doors 4′ and less. Beware of variations in floor and/or ceiling surfaces.
Please check your measurements for accuracy. Contact us if you need additional assistance.
Downloads (specs and warranty info)
