Woodfold Series 220V Vinyl Laminate Accordion Doors
Product: Woodfold Series 220V Vinyl Laminate Accordion Doors
Brand: Woodfold
Brand: Woodfold
Woodfold Series 220 Residential/Commercial Accordion Doors are the ideal choice when you’re looking for flexibility of use, and occasional privacy. Finished on both sides and featuring hardware almost identical to our heaviest-duty system, this Series serves as a divider and helps conserve heat in settings ranging from family recreation areas and galley kitchens to conference rooms and hotel banquet halls – in any space where the door is viewed from both sides. The view will, of course, be appreciated – Series 220 doors are crafted of glowing hardwood or striking Vinyl-Lam finishes. Result: a divider door as handsome as it is hardworking.
Configure Your Door
Dimensions
24 – 96 in
24 – 97 in
$0.00
Specifications | Woodfold Series 220 Residential/Commercial Accordion Doors
- Panels: 4¼” wide by ¼” thick; available in Vinyl-Lam and hardwood veneer faces front and back
- Panel Connectors: Flexible vinyl, color-coordinated to panel selection
Standard colors: White, Sand, Gray, Brown, Black - Track: 1-1/8″ x 1″ aluminum, dark bronze, clear
- Wheels: Nylon wheels on Lexan axle
- Handle: Full-length sweptwing handle attached into first panel and color-coordinated to connectors; specify left or right stack
- Catch: Magnet with strike plate
- Width: Up to 8’0″
- Height: Up to 8’1″
- Stacking Space: 1¼” per foot, plus 7/8″ for sweptwing handle
Note: Series 220 functions as a single door only (no pairs), without keylock options
* Woodfold’s Series 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
Finish Options and Factory Default Configurations - Hardwood Veneers & Vinyl Laminate
PLEASE NOTE: The stain and color samples on this page have been color matched using a monitor calibrated to the sRGB IEC1966-2.1 color profile. Intended only as a guide for color selection, the actual finish materials will vary due to the natural and acceptable variations in wood grain characteristics, textures, and color tones, as well as the color variation that occurs among individual computer monitors.
*All panel samples show factory default color combinations, unless noted otherwise.
Woodfold has today’s most popular hardwood species to match your interiors. Woodfold insists on select grade veneers, laminated to an engineered core to ensure excellent dimensional stability. Clear finish is standard; however, custom-stained finish service is always available.
Birch
Oak
Cherry
Birch Factory Default Colors
Oak Factory Default Colors
Cherry Factory Default Colors
Mahogany
Maple
Walnut
Maple Factory Default Colors
Walnut Factory Default ColorsIncredibly realistic looking, Woodfold’s Vinyl-Lam woodgrain finishes provide a wide range of color selection representing several wood species. Woodfold’s Vinyl-Lam finishes are laminated to an engineered core to ensure excellent dimensional stability.
Maple
Cherry
Oak
Maple Factory Default Colors
Cherry Factory Default Colors
Oak Factory Default Colors
Walnut
Driftwood
Walnut Factory Default Colors

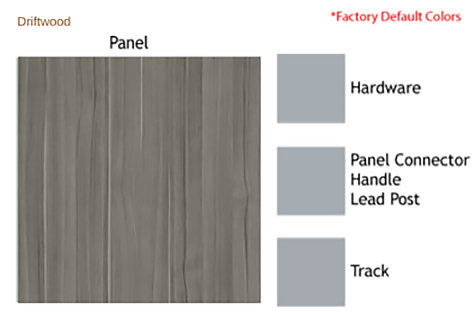

Driftwood Factory Default ColorsWoodfold’s solid color, multi-textured vinyl’s are selected to compliment the most popular current interior colorations. Woodfold’s Vinyl-Lam finishes are laminated to an engineered core for excellent dimensional stability.
White
Black
Gray
White Factory Default Colors
Black Factory Default Colors
Gray Factory Default Colors
Chalk
Chalk Factory Default ColorsCoordinating Hardware Hinge System
A clear (silver) finish is supplied with Off-White and Chalk. A bronze finish supplied with all others.Coordinating Vinyl Panel Connectors
We carefully color coordinates our vinyl panel connectors as a standard feature.
White
Sand
Gray
Brown
BlackHow to Measure for Accordion Doors
To assure correct sizing of your Woodfold accordion door the finished opening should be measured precisely from side to side for width and from the header surface where the track will be attached, to the finished floor or counter surface for height.
Width
Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have.
Note: if the widest dimension is at the bottom or center you may have to trim the suspension track to fit your opening at the top of the door as track lengths are made to the ordering width. This can be done with a hacksaw.Height
Measure from the top of the finished floor to the point where you are going to attach the track.
NOTE: For those areas where the floor is uneven (e.g. concrete floors) please take 3 or 4 height measurements along the floor. Use the shortest measurement as the finished opening height except 2100, 3300 or 4100. For sound doors use tallest height.Dimensions should be stated width first and then height and should represent sizes after any and all modifications have been done to the opening. Unless customer specified, we will allow 9/16″ floor clearance for doors over 4′ high and 5/16″ for doors 4′ and less. Beware of variations in floor and/or ceiling surfaces.
Please check your measurements for accuracy. Contact us if you need additional assistance.
