Woodfold Alumifold Series 740 Security Accordion Doors
Product: Woodfold Alumifold Series 740 Security Accordion Doors
Brand: Woodfold
Brand: Woodfold

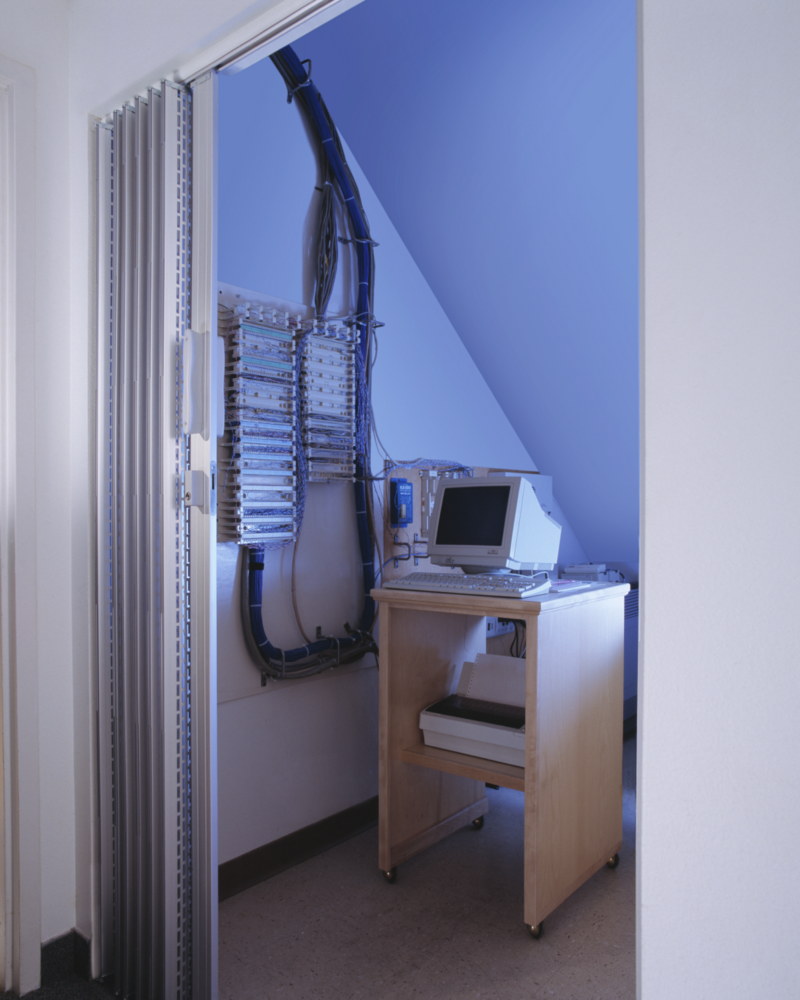

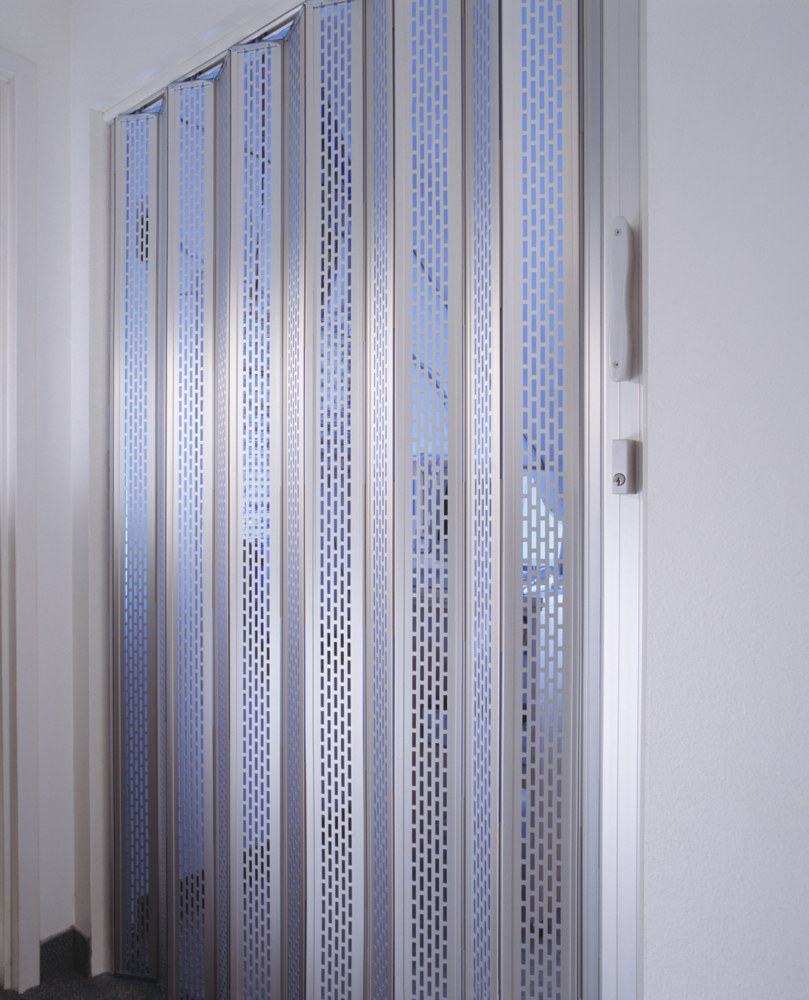

When you need to close off a space and lock it up tight, Woodfold Alumifold Series 740 Security Accordion Doors are a fast, secure way do it. When that space sees a lot of foot traffic, such as malls or public lobbies, Alumifold is the fast, secure, and stylish solution for storefronts or customer service desks. Easy to operate and dependable for years to come, these doors are available in either opaque panels or perforated. Opaque panels offer privacy and extra deterrence; perforated partitions are great for rooms that need the air exchange while staying locked (think IT rooms with hot servers and audible alarms). They’re also beautiful for installations requiring easy-to-clean, sleek-looking folding doors.
Alumifold doors are made from single-piece, extruded aluminum body panels for extra strength, and use our exclusive hardware hinge system featuring rigid vinyl and steel rod construction. Choose from bronze or clear (silver) finishes, with color coordinated panel connectors. Of course it’s built to fit any installation, with a variety of options including curvable track and other locks and latches to make your room Alumifold secure.
Configure Your Door
Dimensions
36 – 600 in
72 – 121 in
$0.00
Specifications | Woodfold Alumifold Series 740 Security Accordion Doors
- Panels: 4-1/4″ wide solid or perforated aluminum in bronze or clear (silver)
- Panel Connectors: Rigid vinyl with steel rods, color-coordinated to panels
Standard colors: White, Sand, Gray, Brown, Black - Track: 1-1/8″ x 1″ aluminum, dark bronze or clear (silver); curvable option available
- Wheels: Nylon wheels on steel axle with ball bearings supplied as standard
- Lead Post: 3/4″ x 2-3/4″ aluminum, color-coordinated to panel connectors
- Jamb Molding: 1-5/8″ wide x 1″ deep aluminum
- Latch: Key lock two sides; other options available
- Handles: Molded PVC with finger recess
- Width: No limitation
- Height: Bronze up to 8’1″; Clear up to 10’1″
- Stacking Space: 1-1/4″ per foot plus 2-3/4″ for lead post
* Woodfold’s Series 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
Finish Options and Factory Default Configurations - Alumifold Panels
PLEASE NOTE: The stain and color samples on this page have been color matched using a monitor calibrated to the sRGB IEC1966-2.1 color profile. Intended only as a guide for color selection, the actual finish materials will vary due to the natural and acceptable variations in wood grain characteristics, textures, and color tones, as well as the color variation that occurs among individual computer monitors.
*All panel samples show factory default color combinations, unless noted otherwise.
Alumifold Series 640 and 740 doors available with .08″ thick solid or perforated panels in clear (silver), bronze, black and white.
Clear (silver) Solid
Clear (silver) Perforated
Bronze Solid – Available only up to 8′-1″
Clear (silver) Solid Factory Default Colors
Clear (silver) Perforated Factory Default Colors
Bronze Solid Factory Default Colors
Bronze Perforated – Available only up to 8′-1″
Black Solid – Available only up to 8′-1″
Black Perforated – Available only up to 8′-1″
Bronze Perforated Factory Default Colors
Black Factory Default Colors
Black Perforated Factory Default Colors
White Solid
White Perforated – Available only up to 8′-1″
White Factory Default Colors
White Perforated Factory Default Colors
White
Sand
Gray
Brown
BlackHow to Measure for Accordion Doors
To assure correct sizing of your Woodfold accordion door the finished opening should be measured precisely from side to side for width and from the header surface where the track will be attached, to the finished floor or counter surface for height.
Width
Measure the width at the bottom, halfway up and at the top of the door and use the widest dimension you have.
Note: if the widest dimension is at the bottom or center you may have to trim the suspension track to fit your opening at the top of the door as track lengths are made to the ordering width. This can be done with a hacksaw.Height
Measure from the top of the finished floor to the point where you are going to attach the track.
NOTE: For those areas where the floor is uneven (e.g. concrete floors) please take 3 or 4 height measurements along the floor. Use the shortest measurement as the finished opening height except 2100, 3300 or 4100. For sound doors use tallest height.Dimensions should be stated width first and then height and should represent sizes after any and all modifications have been done to the opening. Unless customer specified, we will allow 9/16″ floor clearance for doors over 4′ high and 5/16″ for doors 4′ and less. Beware of variations in floor and/or ceiling surfaces.
Please check your measurements for accuracy. Contact us if you need additional assistance.
Downloads (specs and warranty info)
