Woodfold Alumifold Series 640 Accordion Doors

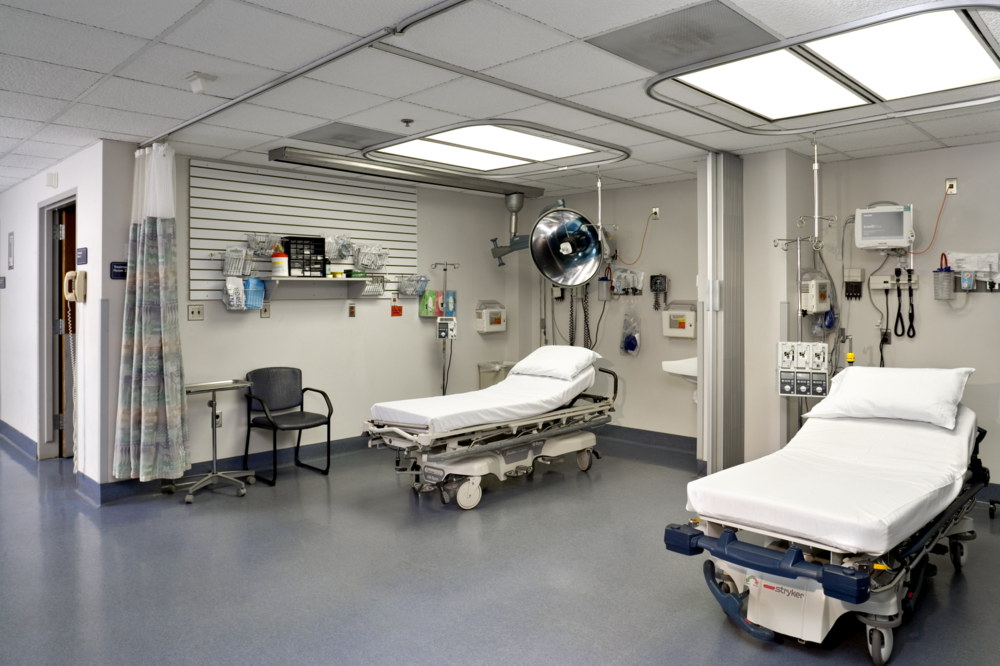

Woodfold Alumifold Series 640 Accordion Doors - Image 2
Woodfold Alumifold Series 640 Accordion Doors - Image 3

Woodfold Alumifold Series 640 Accordion Doors

  • Free Shipping in the Continental United States
    We cannot ship to Alaska, Hawaii, or any international destinations at this time with the exception of Canada.

    Disclaimer for Canadian Orders: Duties, taxes and brokerage are not included, customer is responsible for all brokering costs.  A name and fax/email of the broker is required before the product ships.





    Applications

    Residential and Commercial Aluminum Panel Accordion Doors

    Material

    Alumifold panels: 4-1/4" wide aluminum panels available in solid or perforated style. Frame channel is integral part of panel.

    Solid
    Clear (silver) (width: up to 86' * | height: up to 10'-1")

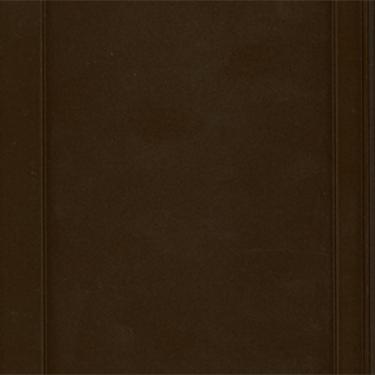

    Bronze (width: up to 86' * | height: up to 8'-1")

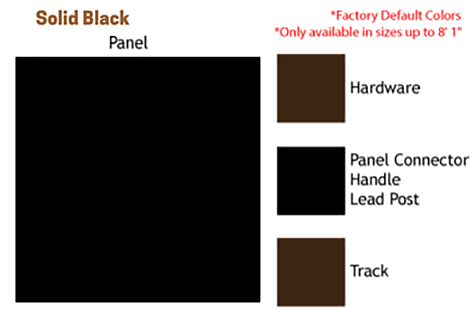

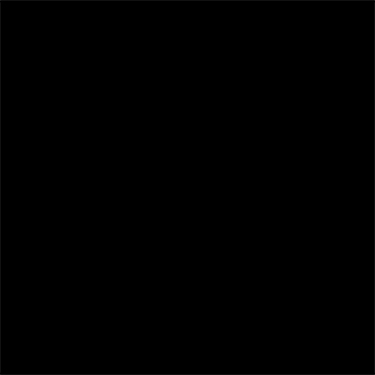

    Black (width: up to 86' * | height: up to 8'-1")

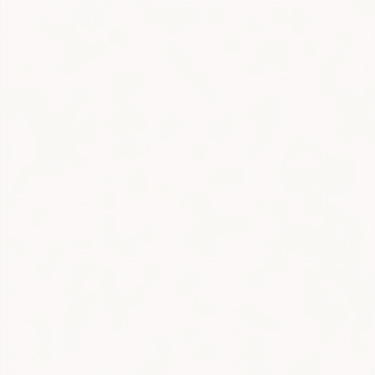

    White (width: up to 86' * | height: up to 10'-1")

    Perforated

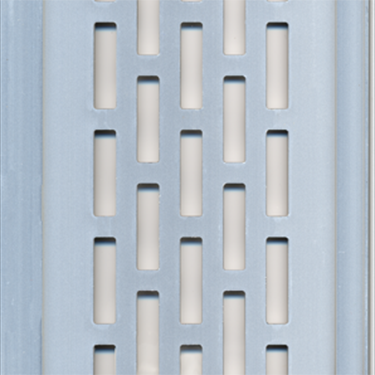

    Clear (silver) (width: up to 86' * | height: up to 10'-1")

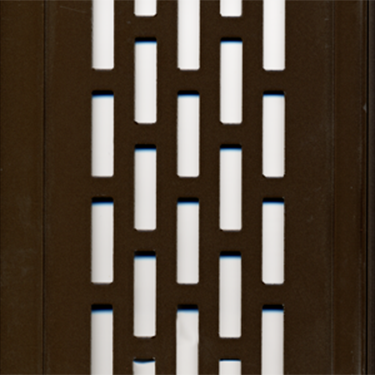

    Bronze (width: up to 86' * | height: up to 8'-1")

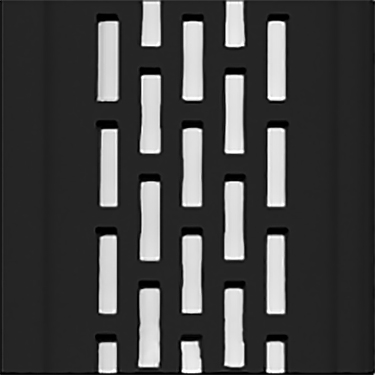

    Black (width: up to 86' * | height: up to 8'-1")

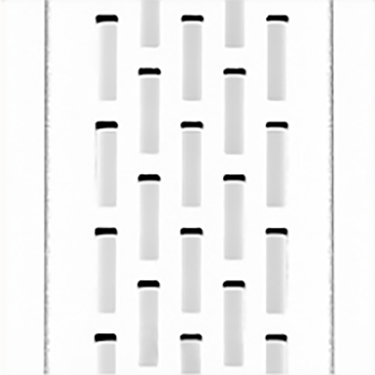

    White (width: up to 86' * | height: up to 8'-1")

    * For widths wider than 86' please call for a custom quote.

    Finished Opening Dimensions

    Refer to our measuring guide for instructions.
    Unless customer specified, we will allow 9/16″ floor clearance for doors over 4′ high and 5/16″ for doors 4′ and less. Beware of variations in floor and/or ceiling surfaces.

    Acceptable range: 24" - 1043"

    Acceptable range:
    See Material list above for specific limitations.

    *Do you need fractional sizing?

    If you require fractional dimensions select the next greater dimension above used for manufacturing costs and enter your fractional dimensions below (e.g. if you need a height of 80 3/4" you would enter a height of 81" above and enter your exact dimensions below).

    Format: W X H (e.g. 62 5/8" X 80 3/4")

    Finish

    Alumifold Panels
    Clear (silver) | Bronze | Black | White

    Styles
    Solid | Perforated

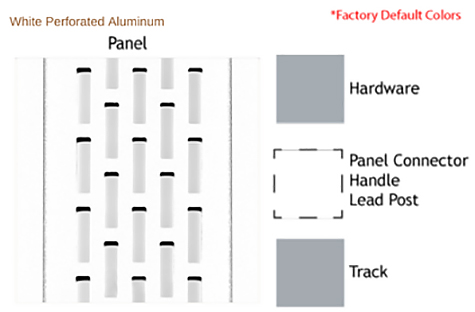

    View finish options and factory default configurations.
